  We are the first Indian manufacturers of baking machines for Wafer Biscuits, Ice Cream Cones and Rolled Sugar Cones.
Established in 1991, R&D Engineers is India’s foremost manufacturer of baking machines for Wafer Biscuits, Ice Cream Cones and Rolled Sugar Cones. We are located in Hyderabad India.


SW24

SW Series - Automatic Wafer Baking Machine :-

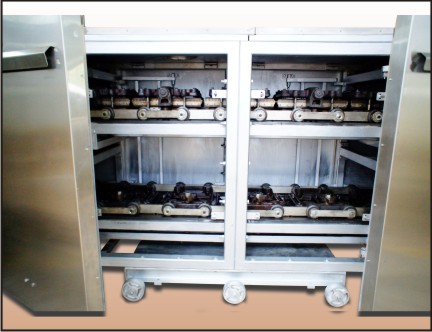

The automatic wafer baking machine SW series suitable for the production of first class quality flat wafers. These machines can be Equipped with 18, 24 30, 36 or 42 baking plates (tongs) according to the required output. The machine is built with a steel frame of rigid construction. An endless chain conveys the baking plates on their carriers through the baking chamber driven by a chain drive infinitely variable in speed through its range. The standard size of the baking plates is 290mm x 460mm. Also, special size of baking plates can be supplied on request. These baking plates can easily be exchanged to produce wafers of different designs. The oven can be heated by L.P. Gas or if preferred by Electricity.
The SW - 18/24 has mechanical batter pump and SW - 30/36/42 has an motorized pumping.


• Technical Specifications

View Video of the line

Download pdf Catalogue

SW Series Wafer Cutting Chart





Video of machine



plan for wafer baking plantand burner layout

Technical Specifications :

TYPE SW 18 SW24 SW30 SW36 SW42
No. of Baking Plate (tongs) 18 24 30 36 42
Output of wafer Sheets/Hr* 640 860 1080 1300 1500
Cream filled Wafer Biscuits in Kg/Hr* (apx.) 72 - 75 96-100 120-125 145-150 175-180
IF GAS HEATING*
L.P.Gas consumption Kgs/hr 10-12 14-16 18-20 20-23 25-28
Electrical load in Kw 3.5 3.5 3.5 3.5 5.0
IF ELECTRIC HEATING*
Load in Kw 70 94 118 141 165
Consumption in Kw(apprix) 56 75 94 100 115
DIMENSIONS IN MM
Length 5,750 7,250 8,750 10,250 11,700
Width 1500 1500 1500 1500 1500
Height 2000 2000 2000 2000 2000
WEIGHT & SHIPPING DETAILS
Net Weight in Kg (approx) 5,500 7,000 8,500 10,000 12,000
Including export packing Kg (approx) 6,750 8,500 10,000 12,500 14,600
Shipping space in Cubic Meters (approx) 25 30 36 42 49
