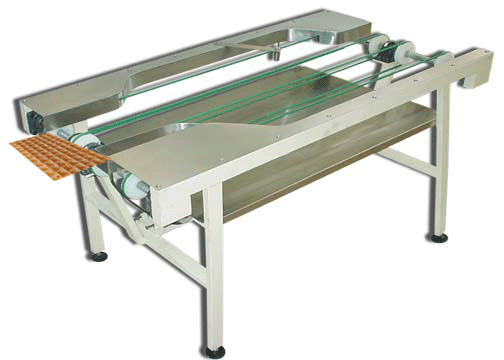

Wafer Turning Device - (WTD) :-

In large scale production when many wafer machines must be installed in an existing production area, or in to an existing production line a layout is required, in which the length and breadth of the wafer can be interchanged this facilitates the orientation wafer sheet to the correct layout for the next process.

Technical Data :

Dimensions (in mm)
Length 1500
Width 800
Height 800
Connected Load (in KW) 0.75
Gross weight (Kgs. apprx) 100
Shipping Volume (CBM) 1
