         Wafer Cutting Machine - (WC3)

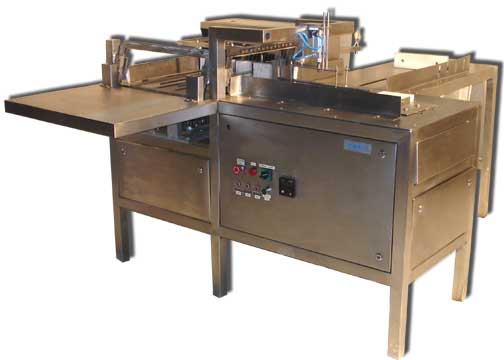

WC3 Machine

This machine is attached with a pneumatic pusher. The wafer books coming from the Book Cooler are fed to the cutting machine through intermediate conveyor where in first the pneumatic pusher allows the wafer book to feed them at first cut and simultaneously a gentle press is applied for a gentle press required for the stack wafer books at the process of cutting.



Technical Data

Machine Variables WC3A WC3B
Size of the plate(in mm)(apprx) 290 X 460 350 X 470
Stake height (in mm) 70 70
Minimum Cutting width (in mm) 16 16
Cutting Wire (spring steel)(in mm) 0.5 0.5
Connected Load (in kw) 1.5 1.5

For pneumatic pusher air supply as required upto 6-7 kg/cm2

Dimensions
Length 2150 1700
Width 1600 1600
Height 1200 1200
Net Weight (in kgs)(apprx) 310 325
Shipping Volume (CBM) 4 4

S.No. Wafer Biscuit Cutting Size
1. Size of Wafer 290X460
2. Size of Wafer 350X470
